NEED OF MODULAR OT

1. In a operating department for which the most integrated function is require, cleanliness must be kept and the safety of facilities, equipment's and devices must be maintained any times.

2. The modular operating theatre satisfying those conditions consists of wall, ceiling and slanted panels, and is capable of incorporating not only electronic equipment, medical gas system and lighting gears but all the necessary functions and equipment's at need.

3. In addition, the modular theatre has a high availability of extension providing for the introduction of new facility in the future, establishing as well an operating environment with high work ability and enough function.

4. The most complex and challenging area of hospital construction and is the operating department. The Pre-fabricated Operating integrated approach to the construction and co-ordination of operating Theatre. The prefabricated operating theatre offer the advantage of speedy construction combined with design, future expansion and development in surgical technique whilst simultaneously providing a structure of the highest quality and standards.

MODULAR OPERATING THEATRE

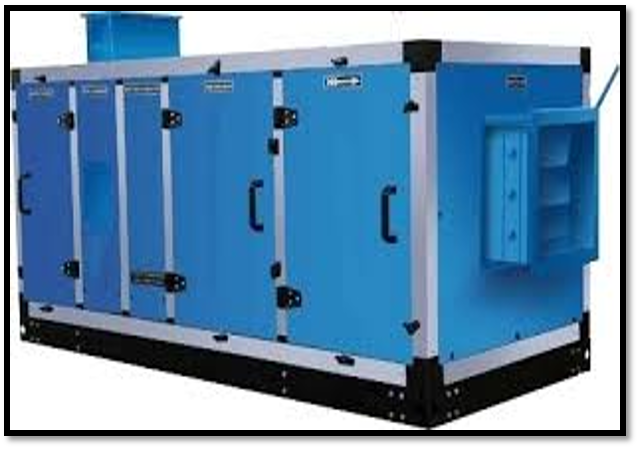

Air Handling Unit Ahu

Product Image
  • An air handling unit (AHU) is a device used to regulate and circulate air as part of the HVAC system.
  • The AHU takes in outside air, reconditions (filtered and cooled) it and supplies it as fresh air to the air conditioned room.
  • As per standard a total of minimum 20 air changes will be provided out of which 4 will be having fresh air component.

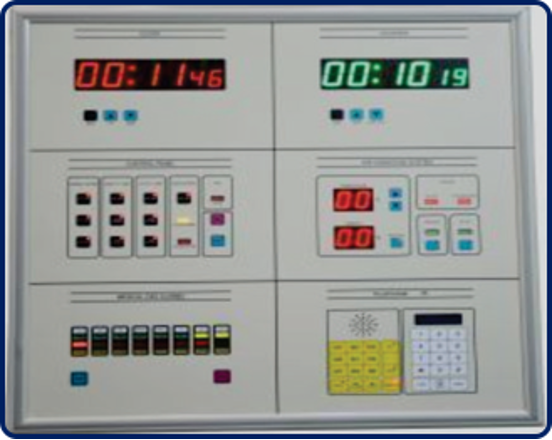

OT Control Panel

Product Image
  • OT Surgeon Control Panel :Providing Supply, Installation of operation theater control panel flush in the theater wall with distribution Board complete with all accessories etc. The Control Panel Comprising of the Following.
  • 1.Gas Pressure Alarm
  • 2.Light Control ON/OFF
  • 3. Real Time Clock
  • 4.Elapsed Time Clock
  • 5. Day and Date Display
  • 6. Temperature Control
  • 7.Humidity Display
  • 8. Positive Air pressure Display
  • 9. Hands Free Telephone Phone

Anaesthesia Pendant

Product Image
  • Surgical Equipment Ceiling Pendant (Double Arm)
  • The surgical arm shall be adequate length to bring it to either side of the operating table, swiveling arm, ceiling mounted column with 2 shelves .
  • The arm shall be arranged to support the endoscope (surgical) equipments. It shall be able to withhold a weight of not less than 150kg.
  • The arms shall be made of 2 swiveling units with the maximum degree of rotary motion in the horizontal plan.
  • The pendant shall be provided with Gas outlet for Oxygen, Vacuum, compressed medical air and CO2, I.V Tree with Electrical Switch & Sockets.

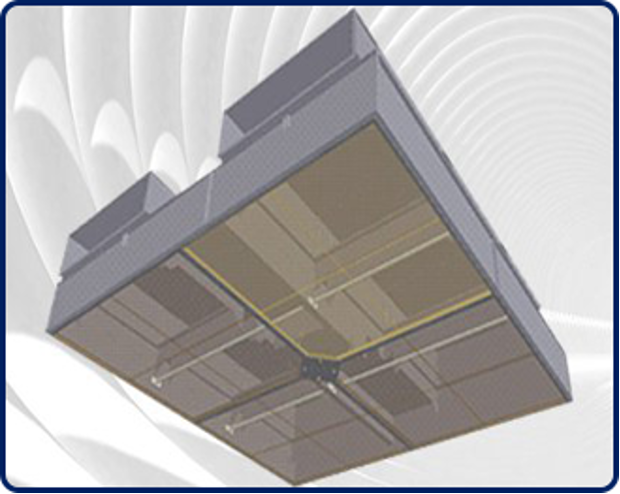

Laminar Airflow System

Product Image
  • Supply of Ceiling Suspension Galvanized ICRCA Sheet Powder Coated Construction Laminar Air Flow Housing with Low leakages G.I. Gear operated\ Volume Control Damper, Side Connection, DOP Testing arrangement, Pressure Plate to fixing of filter.
  • Internal arrangement for fixing of HEPA Filter with Mini Plate HEPA Filter & Aluminum Capsule
  • Perforated Supply Air Grill.

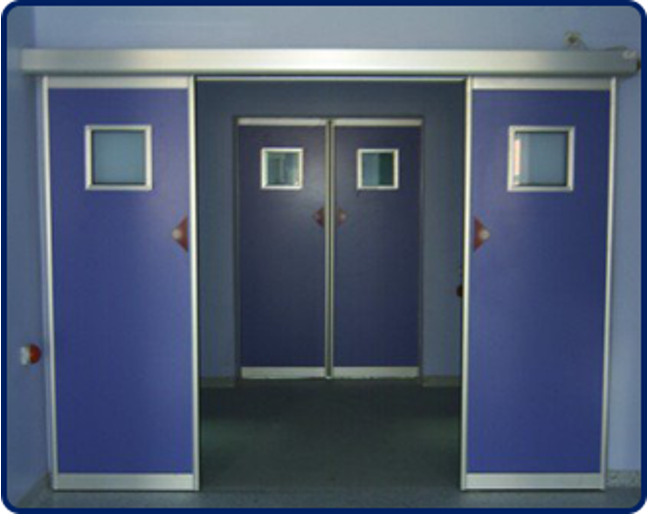

Door Frames

Product Image
  • Uses hermetically sealed sliding doors, to maintain satirically and the correct air pressure in the room, Which requires less valuable space than hinged doors.
  • The door can be operated manually or automatically with microprocessor based electronic automation system.
  • The door frame is made out of high quality anodized aluminum extrusion and the door panel is made out of compact laminated board that can withstand high abrasions
  • The door will run on rubber rollers and guided with nylon runner guides which are fixed to the door in such a way that they do not obstruct trolley movements through the door.
  • he controller will be capable of either being operated by elbow switches I foot Switches, radar switch (touch less sensor).
  • All doors will be able to be operated manually easily in the event of failure power supply or the automation Unit..

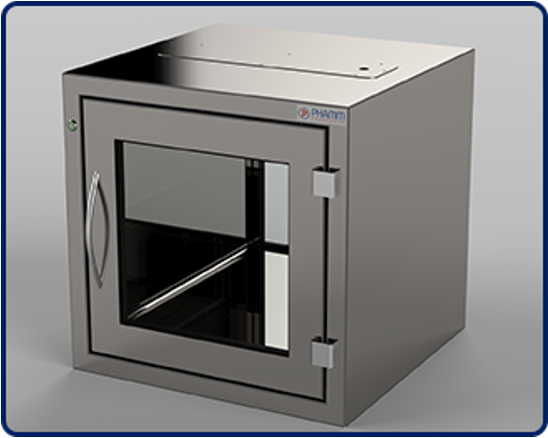

Hatch Box

Product Image
  • The offered product helps in transferring the material from one room to another, without contaminating the air of the clean room
  • Designed with utmost precision; the offered box is made in compliance with the latest industrial standards.

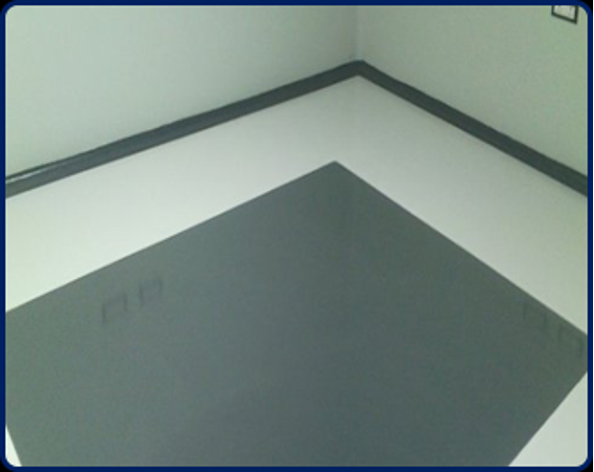

OT Anti Static Flooring

Product Image
  • In Modular operation theatres high quality antibacterial PVC floorings are used.
  • PVC floorings are stain proof, easy to clean and most importantly it keeps our modular operating theatres anti-static..
  • Wide range of colors and designs are available.
  • Types- Conductive/Non-Conductive/Electrostatic/PVC

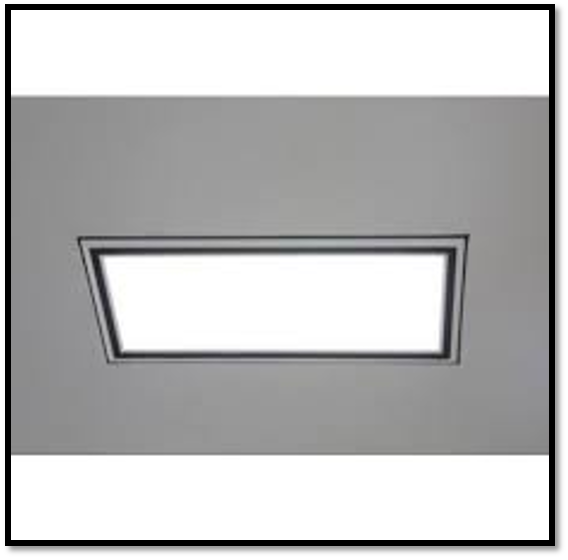

Peripheral Light

Product Image
  • lean Room Lights (L.E.D).
  • Recess mounted sealed IP54 protocol, non-hygroscopic - Dimmable Peripheral Lights LED type for clean room application.

Pressure Relief Damper

Product Image
  • Multi-bladed units, specifically designed to control o.T. Room air pressures
  • Unit comprises of carbon steel housing with grade 304 stainless steel blades.
  • Balancing is carried out utilizing a proven balance weight assembly.
  • Accurate to a range of 1 pascal over their working range of 5-35pa.
  • Adjustment can easily be carried out on site, should the need arise.

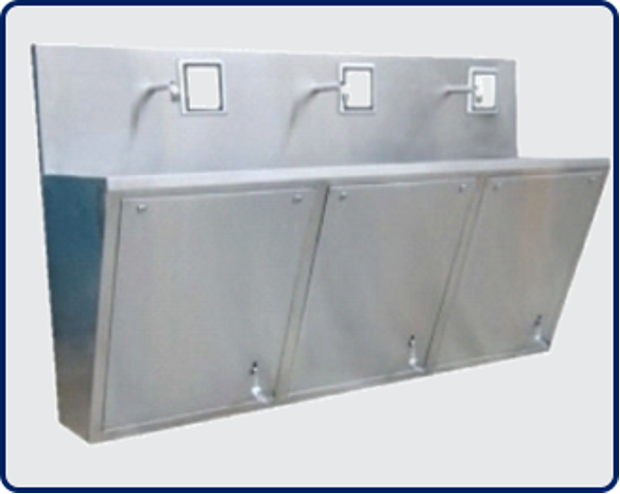

Scrub Station

Product Image
  • Our modular operating theatres are equipped with stainless steel surgical sinks.
  • We design and manufacture according to the layout plan of operating theatres.
  • Our manufactured surgical scrub sinks are easy to maintain and durable.

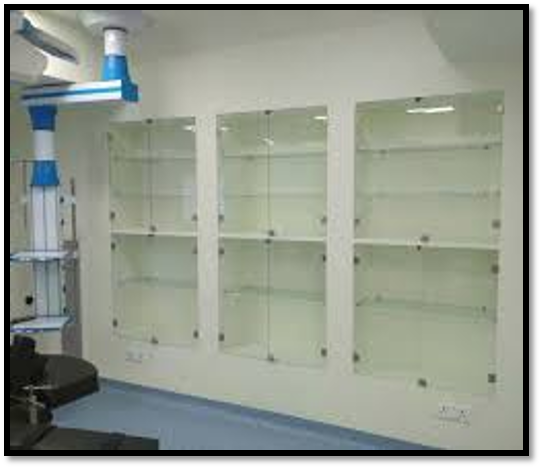

Storage Unit

Product Image
  • Storage unit of customized size made of 1.5mm EGP 120 GSM Zinc coated steel complete with glass doors and all accessories etc.

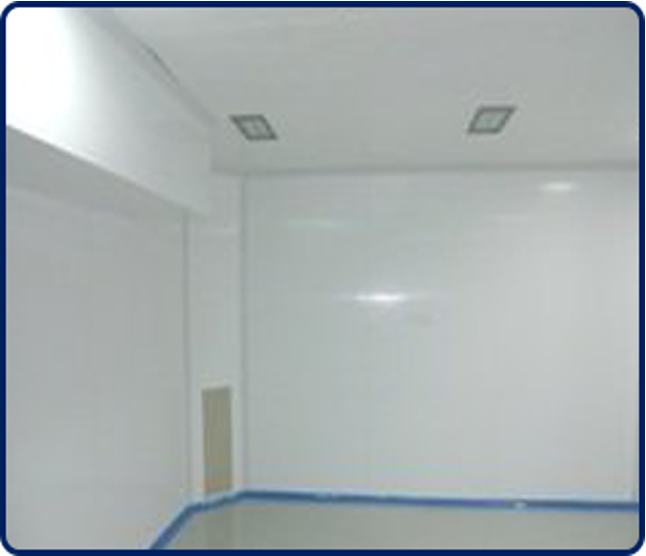

Walls & Ceiling

Product Image
  • To keep our Modular operating theatres sterile, we use stainless steel or powder coated / pre coated modular wall panels.
  • The round corners of walls, floor and ceiling help to maintain laminar flow, stop bacterial & fungal growth and are easy to clean.
  • We also use special antibacterial sealant (silicon) in the joints to ensure hygiene.

Xray Film Viewer

Product Image
  • Twin plate x-ray viewing screen.
  • High frequency fluorescent lamps controlled by dimming balasts.
  • Control luminance without flicker..
  • Uniform level of illumination across the entire front panel. .
  • Sealed flush with the inside face of the operating theatre wall.
  • pring loaded clips to secure the x-ray when in use
