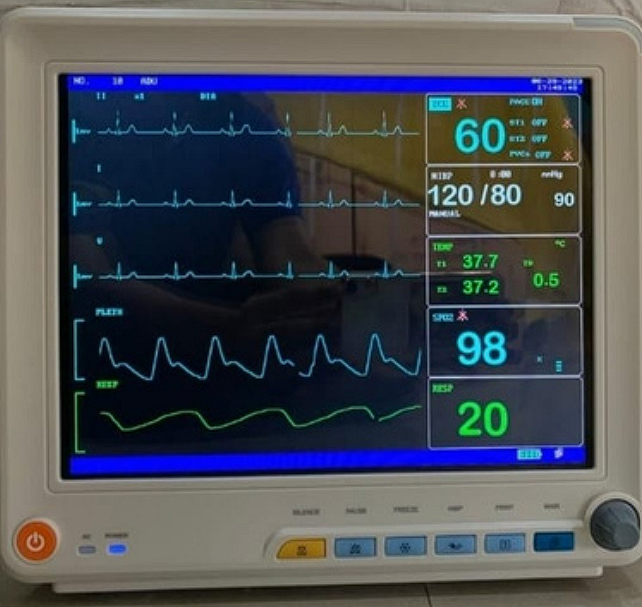

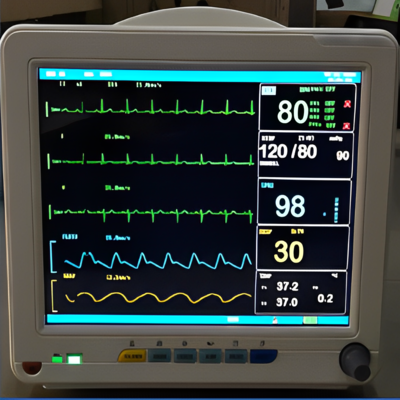

Features

• 5 standard parameters: ECG, RESP, NIBP, SPO2,1-TEMP
• Realtime S-T segment analysis and ARR analysis.
• Multi-display selectable including standard, large font, trend OxyCRG dynamic
• Multi 7-lead ECG waveforms display in phase and capture dynamic waveforms.
• Large volume of tabular and graphic trends information storage and easy to recall
• Efficient resistance to interference of Defbrillator.
• Up to 2 hours working capacity of built-in rechargeable battery.

NIBP

• Method: Digital Automatic oscillometric
• Operation mode : Manual/ Automatic/ Continous
• Over-pressure Protection : Double Safety Protection
• Alarm: Systolic. Diastolic, Mean

SPO2

• Measurement range: 0-100%
• Accuracy: +2% (70-100%); 0-69% unspecified
• Alarm range: 0~100%
• Pulse Rate range: 20~300bpm

ECG

• ECG: Lead mode: 5-lead (R, L, F, N, C)
• Waveform: 3 and 7 channel selectable
• Heart rate range: Adult: 15~300bpm
• Arrhythmia analysis & St.: YES

Temperature

• Compatible probe: YSI or CYF
• Measurement range: 5~50°C

Respiration

• Method: Thoracic impedance between (RA-LL)
• Measurement range:
  • Adult: 7~120rpm
  • Neonate/Pediatric: 7~150rpm

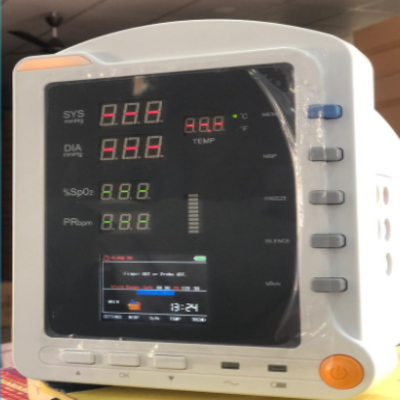

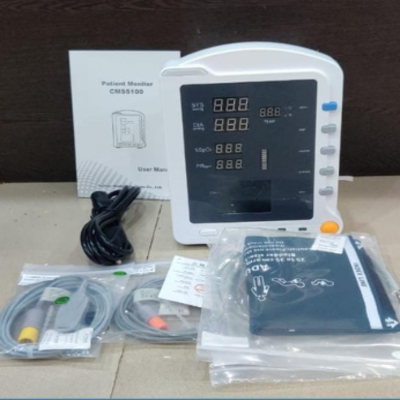

Key Features

• Method: Oscillometry
• Operation Modes: Manual/Automatic
• Auto Measure Time: 1~250 minutes adjustable, interval 5 minutes
• Measurement Range: 10~270mmHg
• Over Pressure Protection: Yes
• Alarm: Systolic, Diastolic, Mean, PR, SPO2
• High Bright LEDs Display of NIBP, SPO2, and Pulse Rate
• High-Resolution Color LCD for Trend Tabular and SPO2 Waveforms Display
• Manual/Auto/Continuous Measurement of NIBP
• Adjustable Audible and Visual Alarms
• Up to 2000 Groups NIBP Data Storage or SPO2 Data up to 10 hours
• Suitable for Adult, Pediatric, and Neonatal Patients

Pulse Rate

• Range: 25~250bpm
• Resolution: 1bpm
• Accuracy: ±2bpm or ±2% (select larger)
• Resolution: 1%
• Net Weight: 1.6 kg
• Dimensions: 240 mm x 190 mm x 162 mm

Display

• 7 Segment LEDs for Systolic Pressure, Diastolic Pressure, SPO2, and Pulse Rate
• 2.4" Color LCD for Waveforms, Bargraphic, Trend, and System Menu
• Weight: 1.15 kg | Dimensions: 232 mm x 198 mm x 75 mm

SPO2

• Measurement Range: 0~100%
• Resolution: 1%
• Accuracy: 70~100% ±2%, 0~69% unspecified
• Alarm Range: 0~100%

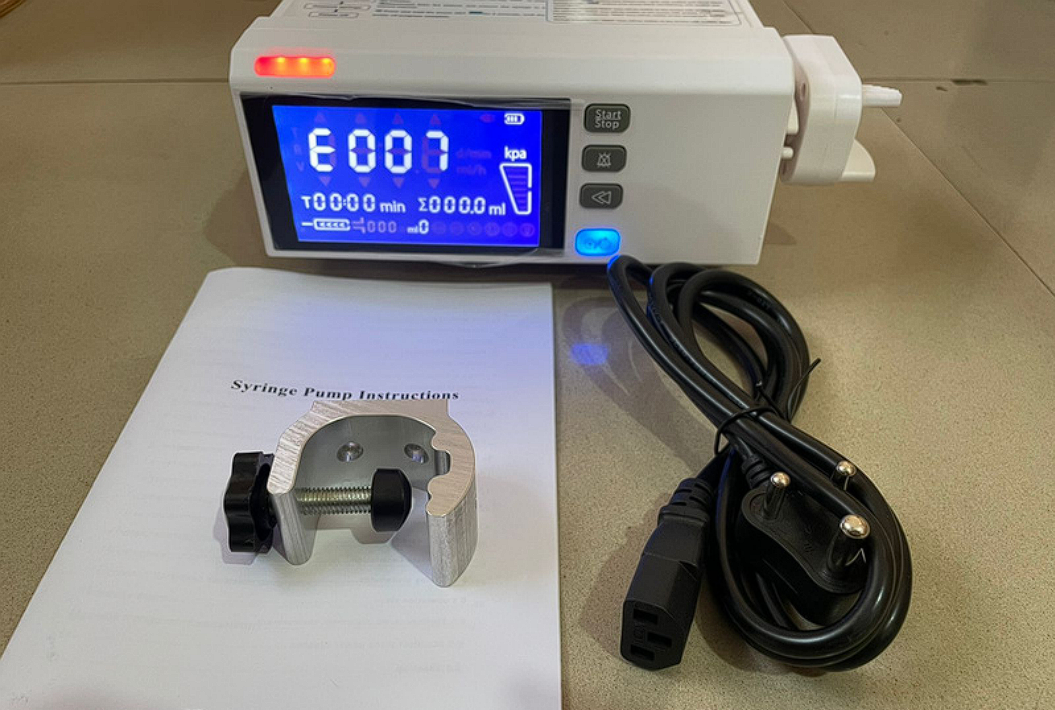

Product features

• 3 Vein Infusion Modes:Easy SpeedSetting Mode, Time-Volume Mode, Dosage Weight Mode
• The system automatically opens up KVO (Keep Vein Open) after injection, reopens vein circulation.
• The machine automatically records the settings for the last injection.
• Function to Auto-Define a Syringe:
• Complete calibration technology for syringe brand definition that ensures the compatibility of any syringe brand and injection accuracy.

Specification

• Syringe size: 2ml(For 1509E), 5ml, 10ml, 20ml, 30ml & 50/60ml
• Volume Limiit: 0.1ml-999.9ml
• Rate: 10ml=0.1ml to 300ml/h, 20ml-0.1ml to 600ml/h, 30ml-0.1ml to 900ml/h & 50ml-0.1ml to 1500ml/h
• Battery Backup: 4 hrs.
• Weight: 2.2 kg
• Dimensions: 280mm x 210mm x 130mm

Specification

• AKG-2008 Optional: SPO2, NIBP & Printer
• AKG-2009 Optional: AED, SPO2, NIBP, Pacemaker, 300J
• Masimo SPO2, 12 LED ECG + ETCO2
• Operating Mode: Manual
• Display: 7" Colour TFT
• Waveform: Biphasic Truncated Exponential
• Energy: 2 to 200 joules in 12 steps selection
• Energy Display: Displays selected and charged/delivered energy
• Synchronous Cardio Version: Energy delivery begins within 60 ms of the QRS Peak
• Charging Time: 6 seconds on Mains
• Paddle Assembly: External paddle assembly with coil retractable high voltage cable.
• Adults & Pediatric paddles integrated into the same handle
• Check Mode: Manual check mode
• Patient Impedance Range: 35 ohm to 250 ohm
• Shock Delivery: Through paddles or pads
• Battery: 12V 4.5Ah, Rechargeable (Sealed Lead Acid)
• Back-up Time: 3 hours min. 70-100 shocks of 150 Joules.
• Display Area: 150 mm x 90 mm
• Dimensions: H280 x W330 x D220 mm (Max) without Paddle
• Weight: Approx. 6 Kgs.
• Printer Size: 50 x 20
• 360 Joules (Optional)

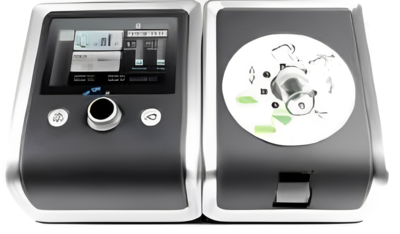

Technical Specifications (Model: RESmart GII-Auto CPAP)

• Display: 3.4 Inch LCD
• Mode: CPAP, AUTO
• Mode of Operation: continuous
• AC Power Consumption: 100-240VAC, 50/60 Hz
• Pressure Range: 4-20 CM, H20
• Data Storage: SD CARD
• Sound Pressure Level: <30 DB
• Maximum Flow: >20 LPM
• Pressure Display Accuracy: ±0.5 HPA
• Dimensions: 170mm x 196mm x 118mm
• Weight: <1.5kg

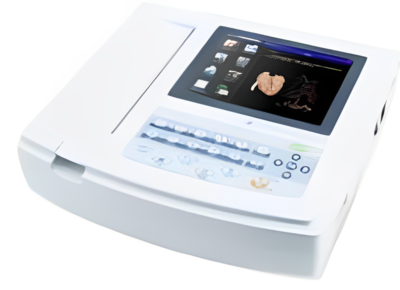

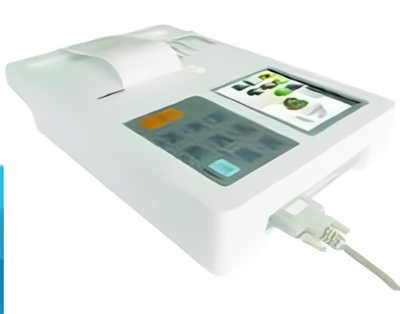

Key Features

• Simultaneous acquisition of 12-lead ECG data, real-time recording
• 10.2 Inch LCD Color Display
• Graphic display of 12-lead ECG waveform
• Built-in analysis software of age which assures accurate analysis result
• Auto-measurement, auto-interpretation, waveform playback, and storage of ECG data.
• Patients Information Can be Input
• Lead off & lack of paper detection function.
• Data Transmitting to PC Via RS232/USB
• USB Flash Disk & SD Memory, PC Review & Print
• Heart rate measurement and pace-maker protection circuit
• Multi-printing formats: manual/automatic, standard 12 channel, 3 channel phis 3 rhythm lead, 6 channel, 6 channel plus rhythm
• AC, DC or built-in lithium battery power supply, alarm of battery weak and lead-off
• Paper Size: 210mm x 20m
• RS232 and USB interface cope with data-share or remote data management requirement (Optional)

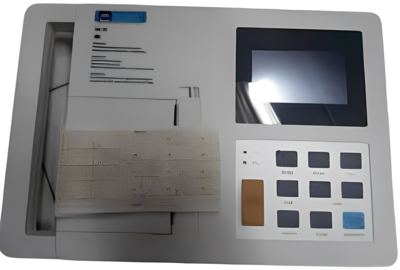

Sigital 3 channel ECG Machine (Touch screen)

• Simultaneous acquisition of 12-lead ECG data
• Screen Display: 5.7 Inch LCD screen, 12 leads display and working Status display 200 ECG Data Storage With Touch Screen Display
• Measurement & Analysis: automatic measurement and analysis Recording Mode: 3CH, 3+1CH, 60 Sec Compressible waveform record Record Paper: 80mmX20/30m
• JPG/PDF Report, PC Connectivity, Pen Drive Storage Cable break off or power deficiency.
• Communication Interface: USB, professional input and output interface
• Power Supply: AC 100-240V (50/60Hz), DC 12V/1500mAh
• Data Storage: SD card for data storage (Optional)

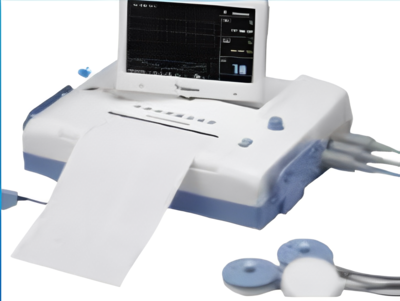

Technical Parameters

• Probe: 9 wafer, wide wave Beam, Pulse working mode, high sensitivity
• Ultrasound Intensity: <5mW/cm2
• Recorder: Thermal Printer
• Recorder Paper: Z-fold, thermal paper
• Printing Width: 112 mm
• Toco Range: 0-100 (relative unit)
• Display: FHR, TOCO, FM, Mark, Time, Freeze, Replay
• Power: AC 220V, 50Hz

Specification

• Power Consumption: <20W< /li>
• Dimension : 320 mm (L) X 260 mm (W) X 80 mm (H)
• Net Weight: 3.2 KG

Main Features CMS-800G

• 8.4" color TFT LCD large Screen
• The world's advanced DSP technology Double event marks
• Three-in-one probe, reduce the line winding.
• Code-operation, easy and convenient
• 12 Hours Data & Waveform Storage and review
• Twins monitoring Function Option.
• Built-in PC Network can be connected to the central monitoring system. (Optional)

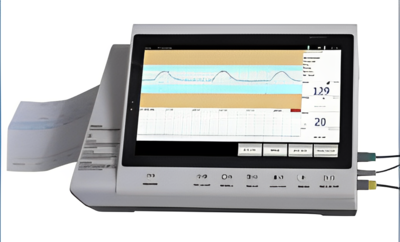

Product features

• 7" wide TFT color LCD display
• Up to 150 patients data saving
• Fetal heart sounds played and recorded on PC
• Rotation screen
• Waterproof Probe
• GE / Philips Paper Compatible Interpretation Function
• Multiple language support
• Built-in quick guide (LCD Type) Waterproof probe
• Twins Probe Available

Specification

• Power Consumption: <20 W
• Dimensions: 96 mm (H) X 326 mm (L) X 276 mm (D)
• Net Weight: 5.5 KG
• Working Temperature: 10-40°C, Relative Humidity 10-80%
• External Link: RS-232C
• Trend: USB Data Saving
• PC Interface (Central Monitoring System)
• Rechargeable Battery

Technical Specifications (Model: RESmart GII-Auto CPAP)

• Display: 3.4 Inch LCD
• Mode: CPAP, AUTO
• Mode of Operation: continuous
• AC Power Consumption: 100-240VAC, 50/60 Hz
• Pressure Range: 4-20 CM, H20
• Data Storage: SD CARD
• Sound Pressure Level: <30 DB
• Maximum Flow: >20 LPM
• Pressure Display Accuracy: ±0.5 HPA
• Dimensions: 170mm x 196mm x 118mm
• Weight: <1.5kg

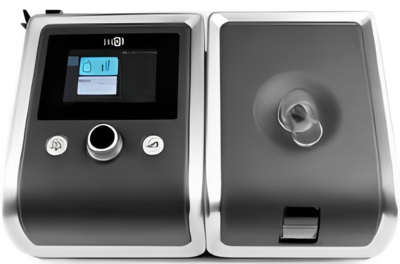

• Display: 2.4 Inch LCD
• Mode: CPAP, S
• Mode of Operation: continuous
• AC Power Consumption: 100-240VAC, 50/60 Hz
• Pressure Range: 4-20 CM, H20
• Data Storage: SD CARD
• Sound Pressure Level: <30 DB
• Pressure Display Accuracy: ±0.5 HPA
• Dimensions: 170mm x 196mm x 118mm, 290 x 196 x 134mm (with InH2 Tm heated humidifier)
• Weight: <1.5kg

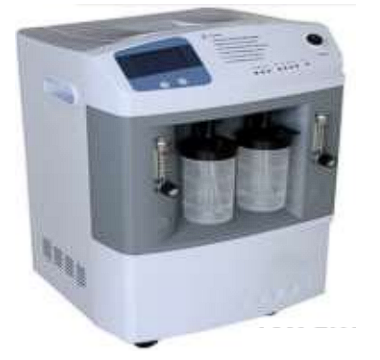

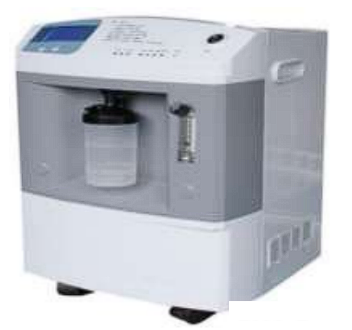

Specification

• Flowrate: 0-SL/min
• Purity: 93% +3%
• Outlet Pressure (Mpa): 0.04-0.07
• Sound Level (dB): <50
• Power: AC220V ±10%, 50/60 +1Hz;
• Power: <480W
• Timer: accumulating timing; present timing
• Alarm: Power failure, High & Low pressure, High temperature
• Net Weight: 25kg
• Size (mm): 365 x 375 x 600

Feature

• SA (Pressure Swing Absorption) technology
• Adjustable flowrate
• Large LCD display for accumulating timing
• Present timing: from 10min to 40 hrs.
• Digital: Pressure, Temperature
• Maintenance reminding
• Nebulizer
