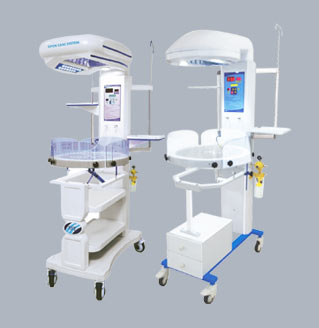

Product features

• Microprocessor-controlled system with self-check
• Skin/Manual control options
• Digital display for Baby Temperature
• Manual/Servo modes for flexibility
• Spacious baby bed with drop-down sides
• Integrated alarm system for:
  • Probe Fail
  • Skin High/Low
  • Power Fail
  • Manual Mode with 50% heat lock
• Heater Assembly with radiant heater, reflector, and examination lamp
• Swiveling heater assembly for directional adjustment
• 2" high-quality castors with brakes

Specification

• Height: 1920mm
• Length: 890mm
• Width: 860mm
• Power Supply: 220V/50Hz
• Heater Power: 650 Watts
• Fuse: 5 Amp

Control and Display

• Operated by advanced microcomputer technology
• Three digital displays for Set Temperature, Air Temperature, and Skin Temperature
• Two function control modes for flexibility
• Larger Skin Temperature display with Celsius/Fahrenheit conversion
• LCD for specific information and heater power visualization

Convenience and Mobility

• Removable heater and control unit for easy cleaning and servicing
• Designed acrylic hood for full visibility and accessibility
• Unit rests on four large castors with brakes
• Optional features: Oxygen Delivery System, Electric Slow Suction, CFL Phototherapy

Safety and alarm

• Comprehensive alarm system with audible and visual indicators for Probe Failure, Power Failure, High Temperature, and Low Temperature
• Adjustable High and Low Temperature alarm settings
• Humidification provided with two water trays
• Three side trays for consumables storage

Control Panel and System Features:

• Skin temperature display can be converted from °C to °F with a button
• Big LCD for information and visualizations of heater power in manual and servo modes
• Full panel of alarms with audible and visual indicators for various conditions

Manual Mode and Baby Bed:

• Adjustable heating from 40% to 100% in manual mode
• Automatic switch from servo to manual mode
• Spacious baby bed with easy drop-down/fold-down glasses
• Optional X-Ray facility below the baby bed

Technical Specifications and Additional Features:

• Dimensions: 1850mm (H) x 1050mm (L) x 650mm (W)
• Power Supply: 220V/50Hz
• Heater Power: 650 Watts
• Fuse: 5 Amp
• Air sensor
• Switches OFF the heater if AIR temperature goes above 39°C
• User-programmable features, Timer, and Check Baby Alarm

Heater Assembly and Lighting:

• Integral examination light
• 650 watts heating system (Silica/quartz/Ceramic Heater)
• Swivels for X-rays and procedures
• Equipped with LED Phototherapy on both sides

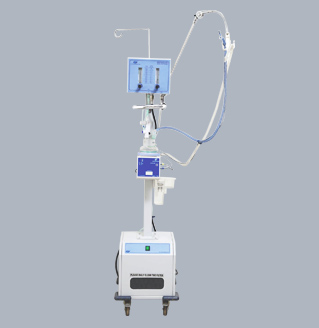

Additional Features:

• Inbuilt Air-oxygen blender.
• Compact, easy to carry with built-in handle on the top.
• Can be used as transport CPAP, if attached to power-supply and oxygen.
• New concept free built-in air compressor easy BUBBLE CPAP.
• Low power design for spontaneous breathing of newborns and children, to provide continuous positive pressure ventilation support.
• Small size, low noise, maintenance-free for NICU, transport, pediatric ward, and other different places.

Product Superiority:

• Able to give the baby a safe and controllable oxygen concentration.
• It is possible to effectively maintain the functional residual capacity.
• Can help reduce the breathing done by the baby.
• Can reduce the need for invasive mechanical ventilation.
• Able to give the baby a better wet gas.
• Can significantly reduce the incidence of chronic pneumonia (CLD).
• Can improve some of the lung physiological indicators, such as height, weight, and so on.

CPAP Pressure Generator:

• With the CPAP pressure bar, it is easy to set the shock pressure from 3 to 250px water column.
• Automatic water level adjustment mechanism to ensure constant CPAP pressure levels.
• Removable water tank can keep the CPAP from being interrupted.

Technical Specifications:

• Ventilation mode (MODE): CPAP (BUBBLE CPAP) mode.
• The scope of application: Applicable to spontaneous breathing of the newborn, to provide continuous positive pressure ventilation support.
• Flow regulation LPM: 0 LPM-10 LPM (Varies in different Air-Oxygen blender).
• Oxygen concentration O2%: 21% - 100%.
• CPAP pressure: 300 Pa – 1000 Pa (3 cm H2O – 10 cm H2O).
• Pressure warning: Sound alarm (Pneumatic alarm).
• Indicator light: On indicates that the device is in operation.
• Working noise: Not more than 55dB (A).
• Gas input: Medical oxygen 0.3MPa-0.4MPa.
• Power supply: AC 220V ± 22V, 50Hz ± 1Hz.

Parameters:

• LED: 9-12 hi-power blue LEDs (white LED optional)
• Irradiance: >42 mw/cm2/nm at 30cm
• Light source lifetime: minimum 25,000 hrs.
• Wavelength: 420-480 nm
• Effective area: 50 cm X 30 cm
• Electrical input voltage: 100-240 V, 50-60Hz

Dimensions:

• Front: 18” (L) x 8.5” (W) x 3” (H)
• Height (adjustable): Min: 1230 mm, Max: 1600 mm
• Length: 800 mm
• Width: 720 mm

Baby Bassinet Features:

• Clear collapsible fold-down side panels
• Baby tray with transparent base for undersurface Phototherapy
• Lower shelf and movable castors
• Offers undersurface LED Phototherapy and serves as a Double Surface Phototherapy Unit
